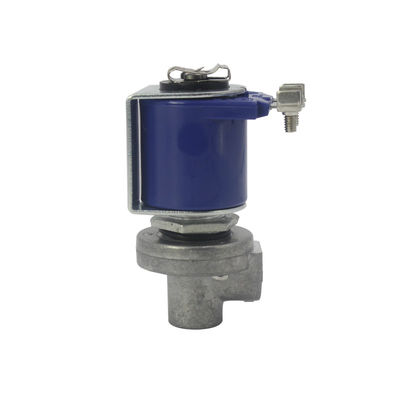

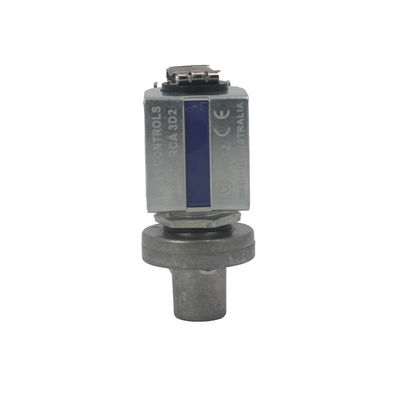

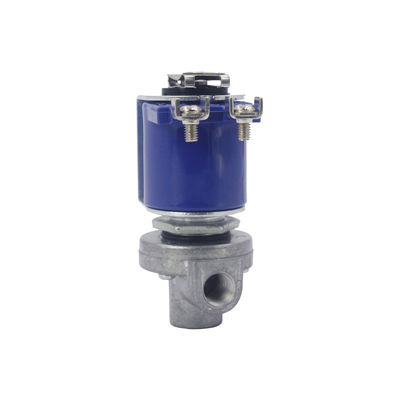

Name: Katup Solenoid Pilot GOYEN RCA3D0-330 RCA3D1-330 RCA3D2-T-QT/1392B
Brand: YW DKE TRADING COMPANY
SKU: RCA3D2
Availability: InStock

Rumah Produk Katup Pulse Jet

Katup Solenoid Pilot GOYEN RCA3D0-330 RCA3D1-330 RCA3D2-T-QT/1392B

Detail produk:

Place of Origin:	China
Nama merek:	GOYEN
Sertifikasi:	CE
Model Number:	RCA3D2

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1
Harga:	Bisa dinegosiasikan
Packaging Details:	Plastic bag, Box, Carton, Pallet
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	5000 pieces/1Month

Kontak

Detil Deskripsi produk

Model No:	GOYEN	Voltages:	12VDC,24VDC,110VAC,120VAC,220VAC,230VAC
Port Size:	3/4'', 1'', 1 1/2'', 2'', 2 1/2'', 3''	Temperature Range:	-5 To +55℃
Diaphragm Number:	2	Pressure Range:	0.3 To 0.8Mpa
Thread Type:	NPT, G	Operating Pressure:	3~8bar
Menyoroti:	RCA3D2-T-QT/1392B GOYEN Pilot Solenoid Valve , RCA3D0-330 GOYEN Pilot Solenoid Valve , RCA3D1-330 GOYEN Pilot Solenoid Valve

Atribut Produk

Nomor model.:RCA3D2

Merek:GOYEN

Katup Jet Pulse Immersion:CA50MM, CA62MM, CA76MM, CA89MM

Ukuran Port (Inci):3/4", 1"", 1 1/2", 2", 2 1/2", 3"

Katup Pulse Jet Threaded:CA15T,CA20T,CA25T,CA35T,CA45T,CA50T,CA62T,CA76T

Saluran udara pulsa:CA25DD, RCA25DD, CA45DD

Klep Jet Pulsa Pilot Jauh:RCA25DD, RCA45T, RCA50T

Tegangan Pasokan:12VDC, 24VDC,110VAC,120VAC,220VAC,230VAC

Nama produk:Katup Solenoid Tipe Goyen

RCA3D0 Solenoid Valve No:RCA3D0-330, RCA3D0-331, RCA3D0-336, RCA3D0-338

RCA3D1 Solenoid Valve No:RCA3D1-330, RCA3D1-331, RCA3D1-336, RCA3D1-338

RCA3D2 Solenoid Valve No:RCA3D2-T-QT/1392B, RCA3D2-T-QT/1004B,RCA3D2-T-QT/764B,RCA3D2-T

PilotKatup SolenoidRCA3D0-330 RCA3D1-330 RCA3D2-T-QT/1392B

Ini RCA3D0 / RCA3D1 / RCA3D2Solenoid tipe GoyenKatup; 1/8 '' G, ukuran pelabuhan NPT berujung; NBRdiafragma;12V DC,24V DC, 100V AC, 110V AC, 120V AC, 200V AC, 220V AC, 240V AC 50/60Hz tegangan untuk AndaPilih; tegangan lain dapat disesuaikanzedRCA3D0-330, RCA3D0-331, RCA3D0-336, RCA3D0-338, RCA3D1-330, RCA3D1-331, RCA3D1-336, RCA3D1-338, RCA3D2-T-QT/1392B, RCA3D2-T-QT/1004B, RCA3D2-T-QT/764B, RCA3D2-T-QT/1295B.

PergilahYen JenisPulse Jet Valve:
1Dengan benangPulse Jet Valve: CA15T, CA20T, CA25T, CA35T, CA45T, CA50T, CA62T, CA76T
2. Dresser Nut Pulse Jet Valve: CA25DD, RCA25DD, CA45DD
3. Invasi Pulse Jet Valve: CA50MM, CA62MM, CA76MM, CA89MM
4. Flanged Pulse Jet Valve: CAC25FS, CAC45FS
5. Remote Pilot Pulse Jet Valve: RCA25DD, RCA45T, RCA50T

Data teknis dari RCA3D0 Pilot Solenoid Valve:

Nomor model	RCA3D0-330	RCA3D0-331	RCA3D0-336	RCA3D0-338
Sama dengan	RCA3D2-T-QT/1392B	RCA3D2-T-QT/1004B	RCA3D2-T-QT/764B	RCA3D2-T-QT/1295B
Jenis kumparan	Spade/Screw
Tegangan	AC200/240V 50/60Hz	AC100/120V 50/60Hz	24 VDC	12 VDC
Kekuatan	17.4/22.6VA	15.2/19.7VA	20W

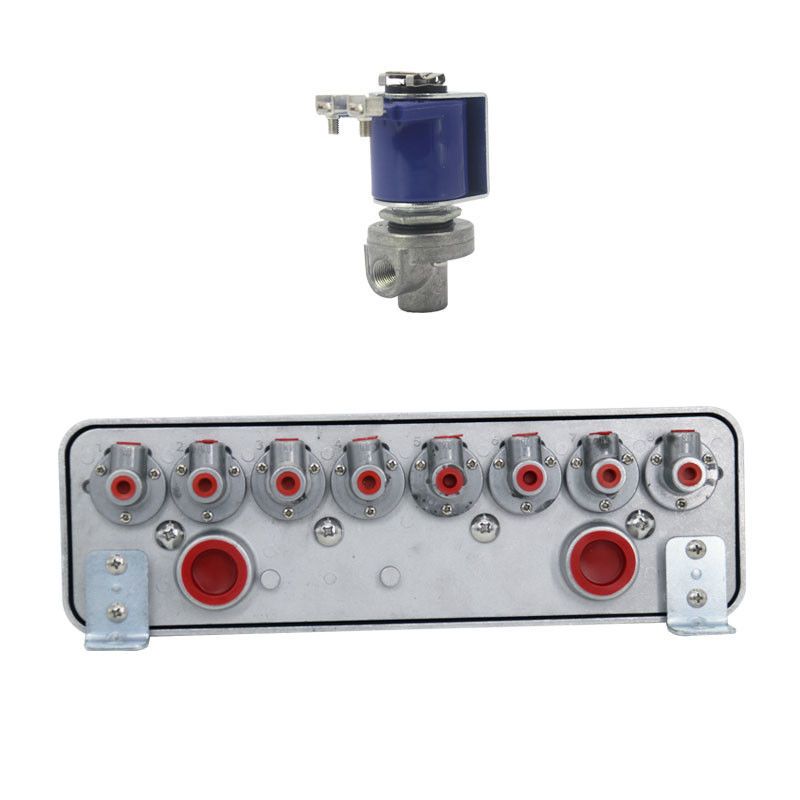

Tips: Semua aksesoris terkait juga dijual, sepertiPengontrol denyut nadi, Kit Perbaikan Diafragma, Solenoid Coil danPerangkat pemasangan katup solenoid.

Dimensi utama RCA3D0 Pilot Solenoid Valve:

Katup Solenoid Pilot GOYEN RCA3D0-330 RCA3D1-330 RCA3D2-T-QT/1392B 0

Daftar semua katup pulsa jet tipe Goyen:

Katup Thread	1/2 "	3/4 "	1"	1.5'	1.5'	2'	2.5'	3'
	CA15T	CA20T	CA25T	CA35T (Diafragma tunggal)	CA45T (Dua Diafragma)	CA50T	CA62T	CA76T
Katup Kotak Pakaian	1"				1.5'
	CA25DD				CA45DD
Katup Flange	1.5'' Inlet				Inlet 2'
	CAC25FS				CAC45FS
Katup perendaman	φ60 Outlet		φ75 Outlet		φ89 Outlet		φ86 Outlet
	CA50MM		CA62MM		CA76MM		CA89MM
Klep Pilot Jauh	1/8"		1"		1.5'		2'
	RCA3D2		RCA25DD		RCA45T		RCA50T
