Product Description:

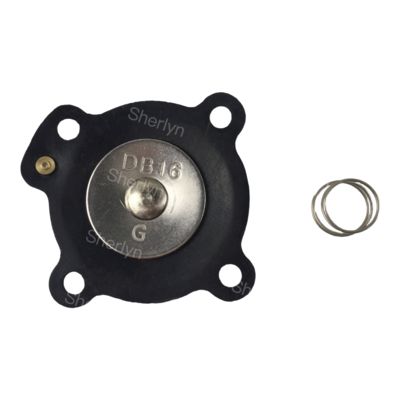

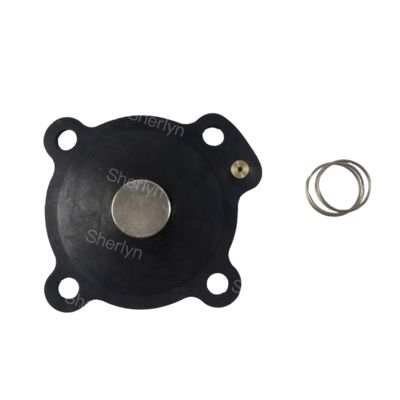

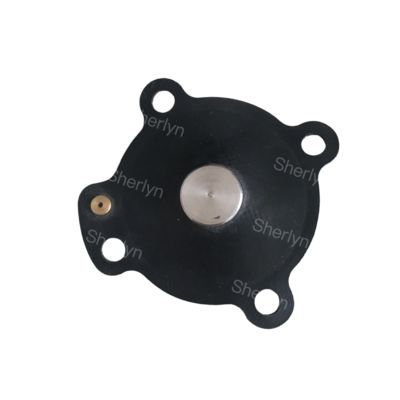

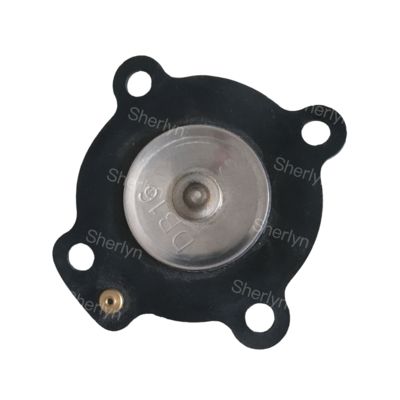

This is DB16/G diaphragm repair kit for Mecair 3/4'' VNP206, VEM206, VNP306, VEM306 pulse jet valve.
We can provide replacement diaphragm valves for any application. We also provide the diaphragm repair kits for these valves. So the shown below is a DB16 diaphragm repair kit for MECAIR 3/4'' VNP206, VEM206, VNP306, VEM306 diaphragm valves. Also known as rebuild kits, diaphragm repair kits can return your diaphragm valve back to peak performance. We stock and supply a wide range of brand name diaphragm valve replacements such as: Goyen, Mecair, ASCO, SBFEC, Joil, Norgren, Turbo, and so on.
Diaphragm valves come in a range of configurations to suit all types of pulse jet dust collector cleaning designs. Diaphragm valves use a flexible molded diaphragm to regulate airflow through the filters for optimal cleaning. The diaphragm valve creates a pulse of air that shakes through the bag, shaking off any dirt on the outside of the bag and cleaning the filter.
1. Diaphragm Repair Kit: DB16/G, DB18/G, DB112/G, DB114/C, DB116/C, DB120/C.
2. Fitted Valves: VNP206, VEM206, VNP306, VEM306, VNP208, VEM208, VNP308, VEM308, VNP408, VEM408, VNP608, VEM608, VNP708, VEM708, VNP212, VEM212, VNP312, VEM312, VNP412, VEM412, VNP214, VEM214, VNP314, VEM314, VNP414, VEM414, VNP614, VEM614, VNP714, VEM714, VNP216, VEM216, VNP416, VEM416, VNP616, VEM616, VNP716, VEM716, VNP220, VEM220, VNP420, VEM420, VNP424, VEM424, VNP620, VEM620, VNP720, VEM720.
Applications:
Industrial Bag-type Dust Removal System
Purpose: Control compressed air pulse blowing to remove accumulated dust on filter bags.
Industry Cases:
Cement Plant: Dust collector at the kiln end (flue gas temperature < 80°C).
Steel Plant: Dust removal at the sintering machine head (requires pre-cooler).
Wood Processing: Sawdust collection system.
Powder Pneumatic Conveying Clearing Blockages
Install pulse valves at blockage points in the pipeline, triggering instant airflow impact with C113825 diaphragms to clear obstructions (e.g., food-grade calcium carbonate, plastic granule conveying).
Material Bin Arch-breaking Device
Break material arches in coal powder bins/grain bins (operating frequency: ≤30 times/minute).
3/4'' Dust Collector Pulse Jet Valve DB16 Nitrile Diaphragm Repair Kit
This is DB16/G diaphragm repair kit for Mecair 3/4'' VNP206, VEM206, VNP306, VEM306 pulse jet valve.
We can provide replacement diaphragm valves for any application. We also provide the diaphragm repair kits for these valves. So the shown below is a DB16 diaphragm repair kit for MECAIR 3/4'' VNP206, VEM206, VNP306, VEM306 diaphragm valves. Also known as rebuild kits, diaphragm repair kits can return your diaphragm valve back to peak performance. We stock and supply a wide range of brand name diaphragm valve replacements such as: Goyen, Mecair, ASCO, SBFEC, Joil, Norgren, Turbo, and so on.
Diaphragm valves come in a range of configurations to suit all types of pulse jet dust collector cleaning designs. Diaphragm valves use a flexible molded diaphragm to regulate airflow through the filters for optimal cleaning. The diaphragm valve creates a pulse of air that shakes through the bag, shaking off any dirt on the outside of the bag and cleaning the filter.
1. Diaphragm Repair Kit: DB16/G, DB18/G, DB112/G, DB114/C, DB116/C, DB120/C.
2. Fitted Valves: VNP206, VEM206, VNP306, VEM306, VNP208, VEM208, VNP308, VEM308, VNP408, VEM408, VNP608, VEM608, VNP708, VEM708, VNP212, VEM212, VNP312, VEM312, VNP412, VEM412, VNP214, VEM214, VNP314, VEM314, VNP414, VEM414, VNP614, VEM614, VNP714, VEM714, VNP216, VEM216, VNP416, VEM416, VNP616, VEM616, VNP716, VEM716, VNP220, VEM220, VNP420, VEM420, VNP424, VEM424, VNP620, VEM620, VNP720, VEM720.
| Ordering code |
Fitted valve code |
Valve port size |
Material |

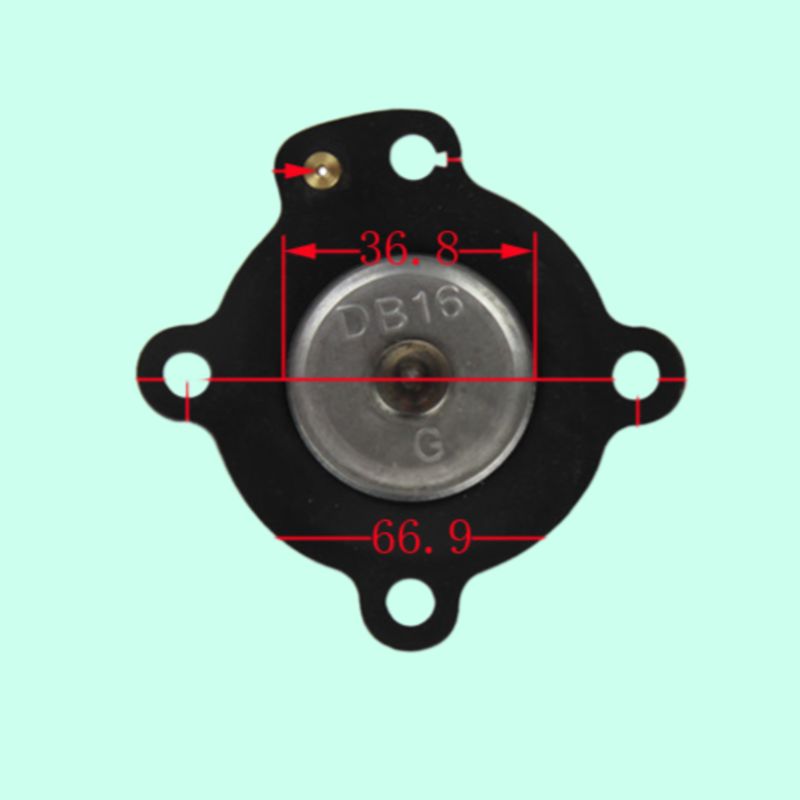

| DB16 |
VNP206, VEM206, VNP306, VEM306 |
3/4'' |
Nitrile/Buna |
| DB18 |
VNP208, VEM208, VNP308, VEM308, VNP408, VEM408, VNP608, VEM608, VNP708, VEM708 |
1'' |
Nitrile/Buna |
| DB112 |
VNP212, VEM212, VNP312, VEM312, VNP412, VEM412 |
1-1/2'' |
Nitrile/Buna |
| DB114 |
VNP214, VEM214, VNP314, VEM314, VNP414, VEM414, VNP614, VEM614, VNP714, VEM714 |
1-1/2'' |
Nitrile/Buna |
| DB116 |
VNP216, VEM216, VNP416, VEM416, VNP616, VEM616, VNP716, VEM716 |
2'' |
Nitrile/Buna |
| DB120 |
VNP220, VEM220, VNP420, VEM420, VNP424, VEM424, VNP620, VEM620, VNP720, VEM720 |
2-1/2'' |
Nitrile/Buna |
| Tips: EPDM, FKM all available. |
Support and Services:
Our Product Technical Support and Services for the Pulse Valve Diaphragm include:
- Installation guidance and support
- Troubleshooting assistance
- Maintenance recommendations
- Product training and education
- Warranty information and claims processing
Packing and Shipping:
Product Name: Pulse Valve Diaphragm
Description: High-quality diaphragm for use in pulse valves.
Material: Durable and flexible rubber.
Package Includes: 1 Pulse Valve Diaphragm
Shipping Method: Standard shipping
Shipping Time: 3-5 business days
