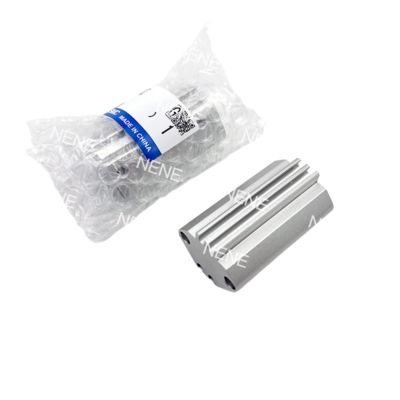

CQ2A12-5D Compact Cylinder Standard Type Double Acting Single Rod CQ2 SMC

Product Description:

The SMC CQ2A Series ultra-compact cylinders provide precise linear motion for applications with limited space. These double-acting single-rod cylinders have a 12mm bore size and come with stroke options ranging from 5mm to 50mm. Despite being 30% shorter than standard cylinders, they offer strong performance due to their construction using aerospace-grade aluminum with hard anodization. Operating at 0.05-1.0MPa (7-145 psi), they can generate a maximum thrust of 90N.

With pre-lubricated seals ensuring maintenance-free operation and integrated magnetic fields for sensor mounting, these cylinders offer convenience and efficiency. They are also compatible with SMC's modular accessory system, allowing for easy integration with guides, valves, and mounting brackets.

Features:

Ultra-Compact: 24mm width, 40% shorter than ISO cylinders (e.g., 82mm @50mm stroke)

Lightweight: Topology-optimized aluminum body (0.15kg @50mm stroke)

Modular Integration: Direct mounting with MXS guides/VQ valves

Balanced Thrust: 90N±3% bidirectional force @1.0MPa

High Speed: 500mm/s operation, 0.15s response time @50mm stroke

Adjustable Cushioning: Optional hydraulic damper (0.043J absorption)

Wide Temp. Option: -XB6 seals for -40~150°C (-40~302°F) operation

Corrosion Resistance: -XC6 stainless steel kit (SUS304 rod)

IP65 Protection: -XC4 dual wipers for dust/dirt environments

4-Side Sensor Slots: Compatible with D-M9N sensors (Φ3.5mm slot)

8 Mounting Styles: Pre-loaded screws for A/L/D-type configurations

Stroke Adjustment: ±5mm travel modification with -XC8 module

Hard Anodized Bore: 25μm coating, 3× wear resistance

Hard Chrome Plated Rod: 0.02mm thickness, μ≤0.15 friction coefficient

Zero-Leakage Seals: X271 FKM compound, <0.1mL/min leakage @0.5MPa

Applications:

Micro-Component Handling: 5-15mm short-stroke models enable precision pick-and-place of 0201 SMD components in PCB assembly, achieving ±0.05mm repeatability.

Laser Marking Systems: 20-30mm strokes drive marking heads with position feedback via D-M9N sensors, ensuring alignment accuracy under 0.1mm deviation.

Diagnostic Sample Transfer: 35-50mm stroke variants with -XC6 stainless steel kits handle biological samples in analyzers, preventing contamination in FDA-compliant environments.

Reagent Dispensing: Low-pressure operation (0.05MPa) achieves 0.1mL fluid dosing accuracy in IVD instruments using 10mm stroke units.

Optical Inspection: 40mm stroke cylinders position AOI cameras at 50-200mm/s adjustable speeds, minimizing vibration during high-magnification imaging.

Robotic End-Effectors: Integrated with collaborative robots for lightweight part insertion (25mm stroke, M3 rod threads) under 0.5s cycle times.

High-Speed Cutting: 50mm stroke models actuate blades in film-sealing systems, completing cuts in 0.2s at 1.0MPa with hydraulic cushioning for shock reduction.

Label Alignment: 15mm stroke versions with -DZ mounting ears correct label position deviations ≤0.3mm in pharmaceutical blister packaging lines.

A medical device manufacturer reduced machine thickness by 42% using CQ2A12-30DMZ with 4-side sensors, cutting downtime 70% in cartridge loading systems.

Support and Services:

Our Product Technical Support team is dedicated to providing assistance with any questions or issues you may have regarding the Piston Pneumatic Cylinder product. Whether you need guidance on installation, troubleshooting, or maintenance, our experts are here to help.

In addition to technical support, we also offer a range of services to ensure the optimal performance and longevity of your Piston Pneumatic Cylinder. These services may include training programs, maintenance contracts, repair services, and more. Our goal is to help you maximize the efficiency and reliability of your equipment.

Packing and Shipping:

Product Packaging:

The Piston Pneumatic Cylinder is carefully packaged in a sturdy cardboard box to ensure safe transportation. The cylinder is securely placed and padded to prevent any damage during shipping.

Shipping Information:

We offer fast and reliable shipping services for the Piston Pneumatic Cylinder. Orders are processed promptly and the product is shipped with care to reach you in perfect condition.
