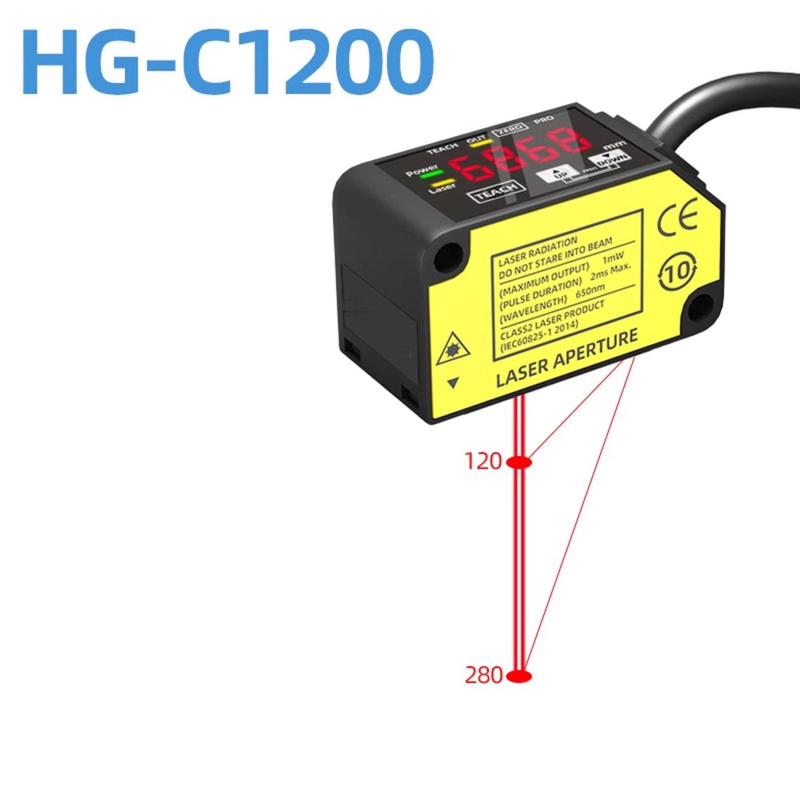

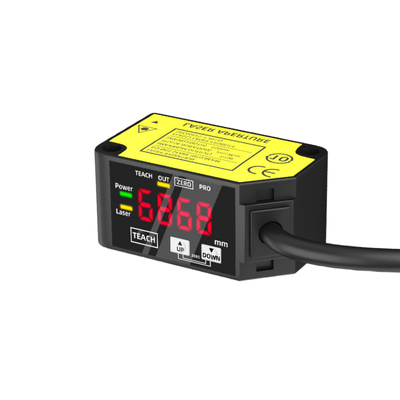

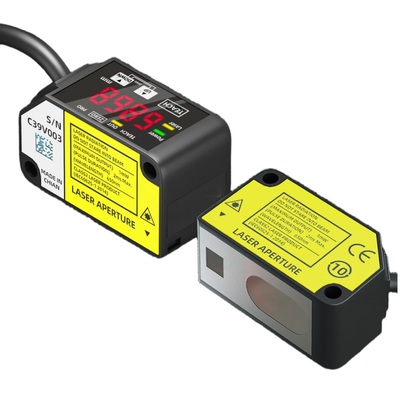

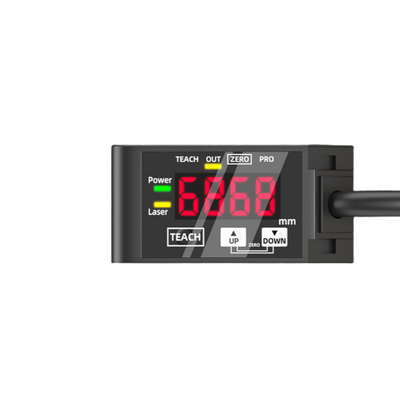

HG-C1200 Visible Red Laser Displacement Detector 0.05 Percent Fs Per Deg C Temperature Stability Light On Dark On Selectable Mode For Industrial Position Test

HG-C1200 Visible Red Laser Displacement Detector 0.05 Percent Fs Per Deg C Temperature Stability Light On Dark On Selectable Mode For Industrial Position Test

HG-C1200 Visible Red Laser Displacement Detector 0.05 Percent Fs Per Deg C Temperature Stability Light On Dark On Selectable Mode For Industrial Position Test

Detail produk:

Nama merek:	DKE
Sertifikasi:	CE
Nomor model:	HG-C1200

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1
Harga:	Bisa dinegosiasikan
Packaging Details:	Carton /As The Clients Require
Delivery Time:	1-7Work Days After Payment
Syarat-syarat pembayaran:	T/T, Western Union, Paypal
Supply Ability:	5000 Pieces/1Month

Kontak

Detil Deskripsi produk

Kelas Perlindungan:	IP67	Tegangan Pasokan:	12–24V DC ±10%
Output kontrol:	Kolektor Terbuka NPN (Tersedia Versi PNP)	Output analog:	Tegangan 0–5 V / Arus 4–20 MA
Waktu Respons:	1,5 / 5 / 10 Ms Dapat Dipilih	Rentang Pengukuran:	±5mm, ±15mm,±35mm, ±80mm, ±200mm
Pengulangan:	10 mikron, 30 mikron, 70 mikron. 200 mikron, 800 mikron	Jarak Pusat Pengukuran:	30mm, 50mm, 100mm, 200mm, 400mm
Menyoroti:	visible red laser displacement detector , 0.05% FS temperature stability detector , selectable mode industrial position test

Product Description: The HG-C series consists of compact CMOS laser displacement sensors specifically designed to deliver stable and highly accurate distance and position measurements within the realm of industrial automation. These sensors combine a CMOS laser optical system with an integrated mirror, enabling a slim body profile without compromising the precision typical of dedicated displacement sensors. Additionally, they feature a 7-segment digital display that presents

Label:

Konverter frekuensi motor,

VFD Frekuensi Vonverter,

Konverter Frekuensi Daya
